Authentication

In order to upload benchmark results to CodSpeed, the CircleCI job needs to authenticate with CodSpeed. There are two supported methods for authentication: OpenID Connect (OIDC) and static CodSpeed tokens. CodSpeed recommends using OpenID Connect (OIDC) for authentication. Using this method, a token is generated on-the-fly during the workflow run. This token is then used to authenticate securely with CodSpeed without needing to store long-lived credentials, but grants no additional permissions to the workflow. On CircleCI, this works by default: a job that sets no CODSPEED_TOKEN authenticates with an OIDC token, and there is nothing to configure for it. If a job cannot use OIDC, authenticate it with a CodSpeed token.

​
CodSpeed token

Some jobs cannot use OIDC and need a static CodSpeed token instead:
  • Pull requests opened from a fork, whose token names the fork rather than your repository.
  • Pipelines triggered by a custom webhook, whose token names no repository at all.
  • Jobs running on an image that does not ship the circleci CLI, which the CodSpeed CLI needs to request the token.
Retrieve your CodSpeed token from your repository settings on CodSpeed: Upload Token from the settings page
Be mindful that a token is scoped to a specific repository. Make sure that you are on the correct repository settings page when copying the token.
Then add it as a project environment variable or in a context, with the name CODSPEED_TOKEN. The CodSpeed CLI reads it from the job environment.

​
Project settings

​
Pipeline trigger

CodSpeed recommends the PR opened or pushed to, default branch and tag pushes event for the benchmarks pipeline: it builds the default branch, recording the baselines, and builds pull requests, which is what CodSpeed reports on. See the setup guide for how to set it.

​
Running the benchmarks in an existing pipeline

You can add the benchmarks to a pipeline you already have. Its trigger covers every job in it, so restricting the benchmarks to pull requests restricts the rest too. CircleCI does not rebuild a branch it has already built, so a branch built before you changed the trigger receives no performance report until you push a new commit to it.

​
Legacy GitHub OAuth projects

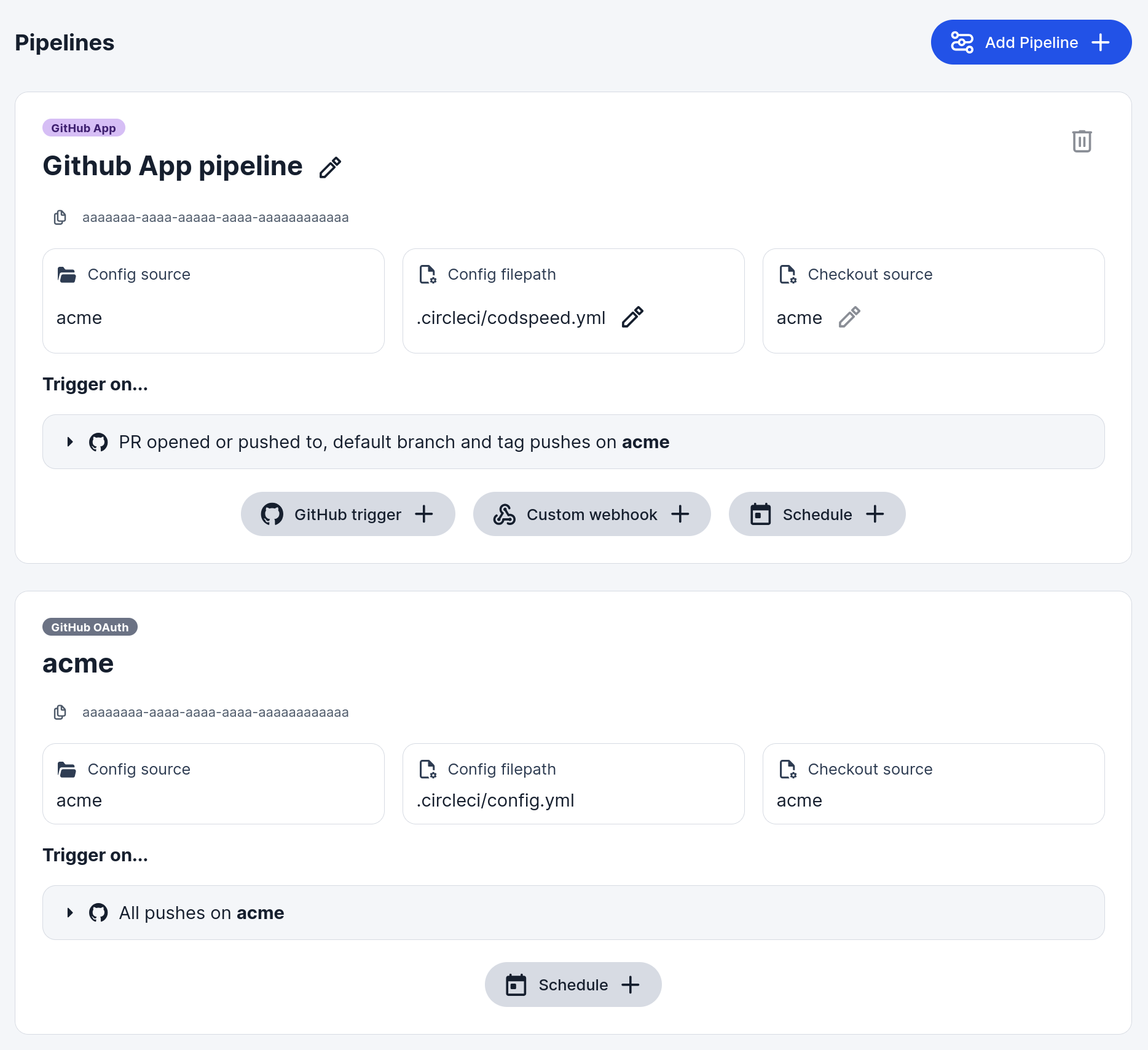

CircleCI has two types of GitHub integration: the GitHub App, which the setup guide follows, and the GitHub OAuth app it replaces. CodSpeed supports both. An OAuth project holds a single pipeline, and its configuration has to live in .circleci/config.yml. The benchmarks job goes in that file, alongside your other jobs, rather than in a dedicated one:
.circleci/config.yml
The job needs no upload token: with CODSPEED_TOKEN unset, it authenticates with an OIDC token. Its trigger is the one that pipeline already has, so the same tradeoff applies.
If you use an OAuth project with a trigger that builds every push and the pull request is opened after the branch has already been built, the CodSpeed report may not appear on the pull request. In that case, push a new commit to the branch to get the report.
To bypass these restrictions, CodSpeed recommends installing the CircleCI GitHub App, which can be installed alongside an existing GitHub OAuth pipeline, and giving the benchmarks a pipeline of their own as the setup guide does.

​
Advanced

​
CLI version

The examples pin the CLI version in the install URL, which is what CodSpeed recommends: the tools an instrument needs are pinned to it, so a version that moves under you can shift the measurements. All versions are listed on the releases page. To install the latest version on every job instead, drop the version from the URL:
.circleci/codspeed.yml
The second command puts codspeed on the PATH of the steps that follow, since every run step starts a fresh shell. Refer to the CircleCI documentation on setting an environment variable in a shell command for more details.

​
Running benchmarks in parallel CI jobs

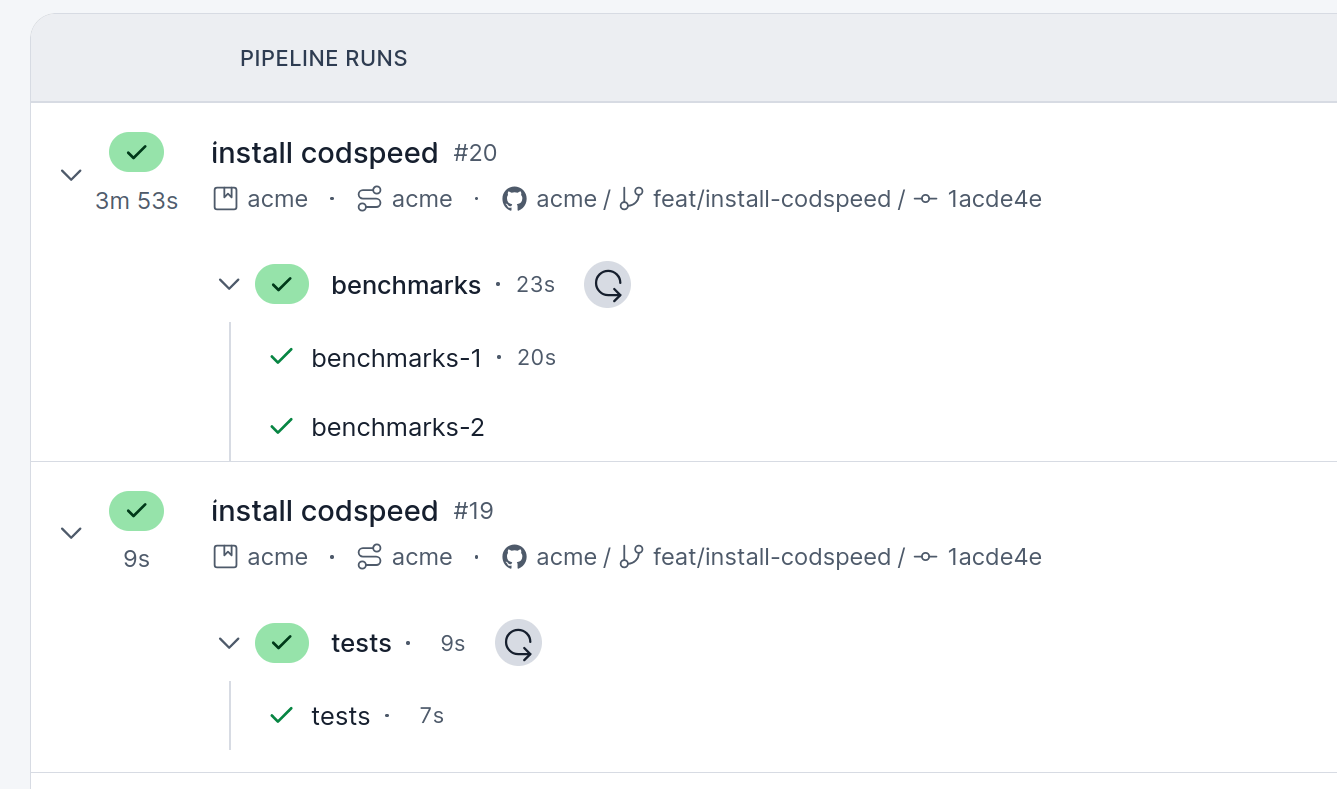

With CircleCI, you can split your benchmarks across multiple jobs, either with a matrix of jobs or with the parallelism key. For example with pytest, using a matrix. The --test-group options come from pytest-test-groups, which the benchmarks job needs installed alongside your other dependencies:
.circleci/codspeed.yml
The parallelism key works as well, and CodSpeed keeps the results of its containers apart. Since CircleCI numbers them from 0, shard from $CIRCLE_NODE_INDEX and $CIRCLE_NODE_TOTAL:
Keep those jobs in the same workflow. CodSpeed groups the results of a run by CircleCI workflow, so jobs spread across several workflows produce several incomplete runs. Learn more about benchmark sharding and how to integrate with your CI provider.

​
Caching the installed instruments

The CodSpeed CLI installs the tools its instruments need, such as valgrind for CPU simulation, on every job. Install them in a step of their own with codspeed setup, pointed at a directory you cache, and later jobs restore them instead of installing them again:
.circleci/codspeed.yml
Only the setup step takes --setup-cache-dir, since the instruments it installs are already in place when the benchmarks run. Caching right after it, rather than after the benchmarks, means a benchmark failure does not cost the next run the install. The tools are pinned to the CLI version, so include that version in the cache key when you install a pinned CLI rather than the latest one.

​
Executors

Both the machine and the docker executor are supported:
  • machine, with an Ubuntu 22.04 or later image, for example ubuntu-2404:current.
  • docker, with an image based on Ubuntu 22.04 or later, or Debian 12 or later. CircleCI’s cimg images qualify.
Use the same one for every benchmark job, so that a run and the baseline it is compared against are measured in the same runtime environment. CircleCI has full support for the CPU simulation and memory instruments. The walltime instrument will run, but not produce reliable results without a dedicated machine, and macro runners are not available on CircleCI yet.
