The Rust 1.78.0 version was released on May 2, 2024. The [release announcement](https://blog.rust-lang.org/2024/05/02/Rust-1.78.0.html#compatibility-notes) mentions that the bundled LLVM version is upgraded to 18, completing the announced `u128`/`i128` [change](https://blog.rust-lang.org/2024/03/30/i128-layout-update.html) for x86 architectures. It is mentioned that if your code uses 128-bit integers, **you may notice runtime performance improvement**. Let's dive into how this can happen.

### The alignment issue with `u128`/`i128`

> The _alignment_ of a value specifies what addresses are valid to store the value at. A value of alignment `n` must only be stored at an address that is a multiple of `n` (from the [the Rust Reference](https://doc.rust-lang.org/reference/type-layout.html#size-and-alignment))

<Figure maxW="600px" mx="auto">
  ![How alignment works](alignment.excalidraw.png)
</Figure>

Normally, the memory size of a value should always be a multiple of its alignment to prevent misalignment issues.

However, on x86 architectures, there is an inconsistency with the alignment of 128-bit integers between rustc (the rust compiler) and C conventions:

<Table maxW="500px">
  <Thead>
    <Tr>
      <Th>Data type</Th>
      <Th>Memory size</Th>
      <Th>Alignment</Th>
    </Tr>
  </Thead>
  <Tbody>
    <Tr>
      <Td>i128 (rustc 1.77.0)</Td>
      <Td>16 bytes</Td>
      <Td>8 bytes</Td>
    </Tr>
    <Tr>
      <Td>__int128 (clang 17.0.1)</Td>
      <Td>16 bytes</Td>
      <Td>16 bytes</Td>
    </Tr>
  </Tbody>
</Table>

In Rust < 1.77, 128-bit integers are **8-byte aligned,** whereas the corresponding C types are **16-byte aligned**. But they all have a size of **16 bytes**.

Let's see how this misalignment can degrade performance.

### Why memory misalignment can lead to worse performance?

Having a memory size greater than its alignment can lead to cases where the value is stored at an address right at the edge of a memory cache line (which is usually **64 bytes**), which will cause the value to be stored on **two cache lines instead of one**.

Let's create an example where this happens with Rust 1.76.0 on an x86_64 machine. Let's look at the following code:

```rust
use type_layout::TypeLayout;

const GAP: usize = 128;

#[derive(TypeLayout, Copy, Clone)]
#[repr(C)]
struct StockAlignment {
    _offset: [u8; GAP - 8], // 1-byte aligned
    data: u128,             // 8-byte aligned
}

pub fn main() {
    println!("Alignment of u128: {}", align_of::<u128>());
    println!("{}", StockAlignment::type_layout());
}
```

Here, we created a `StockAlignment` struct that contains an array `_offset` of `u8` and an `u128` integer `data`. We use the [`type_layout` crate](https://docs.rs/type-layout/latest/type_layout/) to be able to see what the size and alignment of the struct will be.

After we execute the code, we have the following:

```text
Alignment of u128: 8
StockAlignment (size 136, alignment 8)
| Offset | Name      | Size |
| ------ | --------- | ---- |
| 0      | _offset   | 120  |
| 120    | data      | 16   |
```

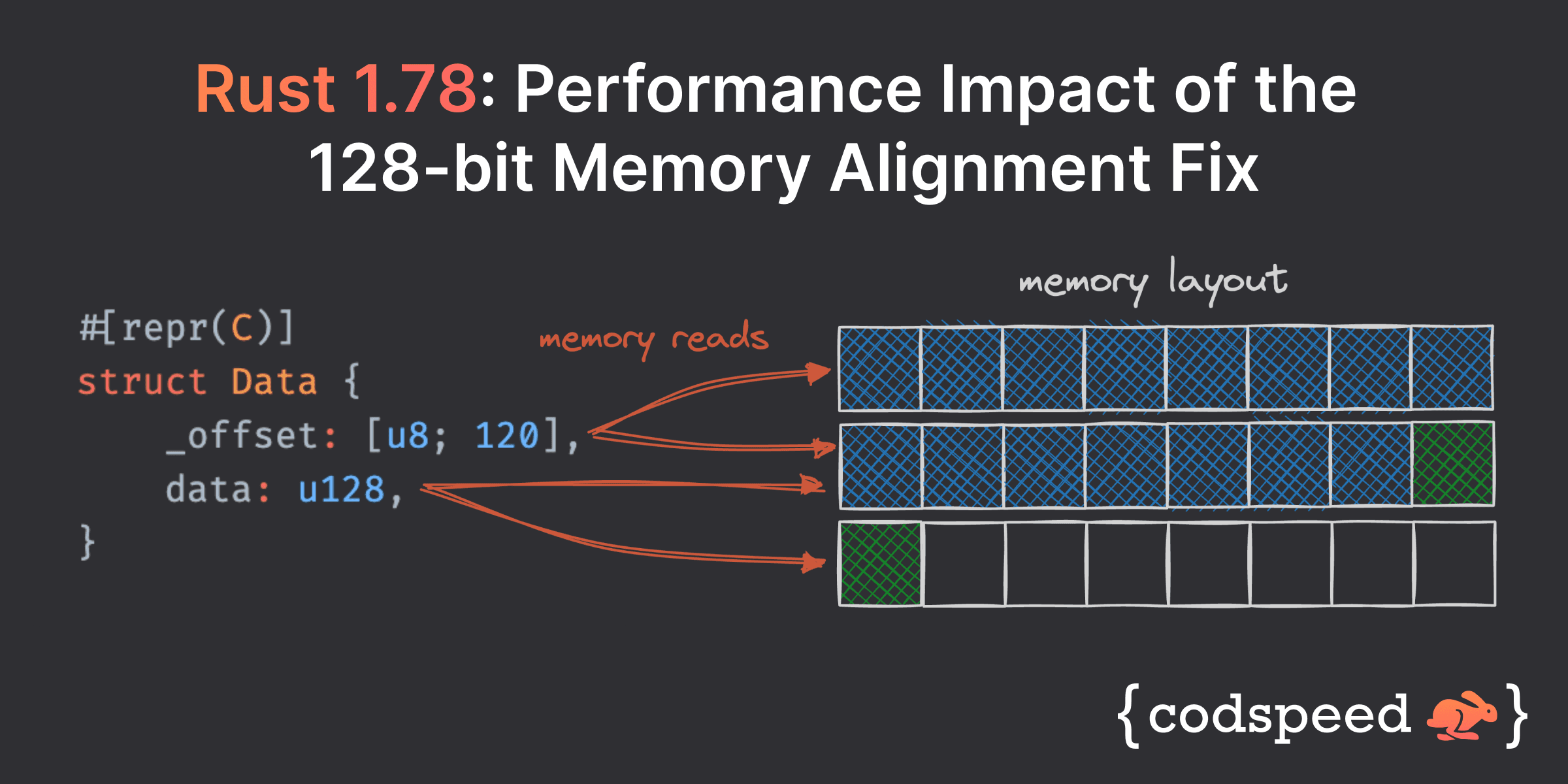

That means that an instance of `StockAlignment` will span three cache lines of 64 bytes, like so:

<Figure maxW="500px" mx="auto">

![Stock alignment with Rust 1.76.0](stock-alignment-1.76.excalidraw.png)

  <Caption>Each square represents 8 bytes</Caption>
</Figure>

The misalignment problem is visible here. When `data` is accessed, **two cache lines of 64 bytes are read** from memory. This is effectively loading twice as much data as needed, since `data` is only 16 bytes, a **single cache line could have been read** if it was properly aligned.

Let's create a new struct where we enforce `data` and its containing struct to be correctly (16-bit) aligned. With the proper alignment, this is what we expect the memory layout will look like:

<Figure maxW="500px" mx="auto">

![Enforced alignment with Rust 1.76.0](enforced-alignment.excalidraw.png)

  <Caption>Enforced alignment with Rust 1.76.0</Caption>
</Figure>

With that alignment, accessing `data` will only load a **single cache line**. To achieve it, we can write the following code:

```rust
use type_layout::TypeLayout;

const GAP: usize = 128;

#[derive(Copy, Clone)]
#[repr(C, align(16))]
struct AlignedU128(u128);

#[derive(TypeLayout, Copy, Clone)]
#[repr(C)]
struct EnforcedAlignment {
    _offset: [u8; GAP - 8],
    data: AlignedU128,
}

pub fn main() {
    println!("{}", EnforcedAlignment::type_layout());
}
```

Here we created a struct `AlignedU128`, that only stores a single `u128` and enforce it to be 16-byte aligned. We then use this as the type of `data` in a new `EnforcedAlignment` struct.

After we execute the code, we have the following:

```text
EnforcedAlignment (size 144, alignment 16)
| Offset | Name      | Size |
| ------ | --------- | ---- |
| 0      | _offset   | 120  |
| 120    | [padding] | 8    |
| 128    | data      | 16   |
```

So we optimized `EnforcedAlignment` to access `data` more efficiently, but it comes at a cost in memory since it costs 8 more bytes than `StockAlignment`.

### Comparing the performance between the two alignments

To measure the performance of loading `data` with different alignments, we created performance tests with the [criterion.rs benchmarking library](https://github.com/bheisler/criterion.rs).

Before running the benchmarks, we allocate two arrays of `8192` elements, one filled with `StockAlignment` instances, and the other one with `EnforcedAlignement`. We then create two benchmarks where we access the `data` property of all the elements of the array:

```rust
let c: &mut Criterion;
let stock_align: Vec<StockAlignment>;

c.bench_function("stock align bench", |b| {
    b.iter_batched(
        cache_fuzzer,
        |_| {
            let mut sum = 0;
            for i in 0..N {
                sum += stock_aligned[i].data;
            }
            sum
        },
        criterion::BatchSize::PerIteration,
    );
});
```

For the other struct, we have the same benchmark code.

<Alert>
  The [`iter_batched`
  function](https://bheisler.github.io/criterion.rs/book/user_guide/timing_loops.html#iter_batchediter_batched_ref)
  allows to pass a setup function as the first argument, with the actual
  benchmark being the second argument. The `cache_fuzzer` function is used to
  clear the cache before each benchmark to avoid the effect of cache hits on the
  benchmark results. This ensures that previous iterations have close to no
  impact on the current one.
</Alert>

To have stable and reproducible results, we use the **CodSpeed runner, providing a consistent execution environment**.

<PerfDiff
  base={280.4e-6}
  head={250.5e-6}
  name="ordered access"
  description="Changing from stock to enforced alignment"
/>

This notable **performance improvement when using the properly aligned struct** confirms our initial idea: optimizing the alignment effectively **reduces the number of cache misses** and thus RAM accesses, ending up with a **positive impact on performance**.

Here we only tested when accessing elements of the array in an ordered way. Under the hood, there could be some optimizations loading more memory than requested from contiguous blocks in our measurements. For example, loading more memory than requested from contiguous blocks. To test in different situations, we added two more groups of benchmarks:

- `reversed access`, to simulate access in a reversed order
- `randomized access`, to simulate access in a randomized order

We get the following results:

<PerfDiff
  base={279.8e-6}
  head={249.9e-6}
  name="reversed access"
  description="Changing from stock to enforced alignment"
/>

<PerfDiff
  base={241.5e-6}
  head={219.4e-6}
  name="randomized access"
  description="Changing from stock to enforced alignment"
/>

The performance gains are consistent with the first we observed and thus the order in which we access the data does not affect the performance much.

<Alert>
  Using the **CodSpeed runner will execute the benchmark code on a virtualized
  CPU** in a controlled CI environment, measuring the CPU instructions and
  turning them back into a human-readable time measurement. Learn more about the
  [CodSpeed performance metric on our
  docs](https://docs.codspeed.io/features/understanding-the-metrics/#execution-speed-measurement).
</Alert>

### Real-world check with Rust 1.78.0

Now that we identified and shown the problem with Rust 1.76.0, let's bump Rust to 1.78.0 and see what happens.

```diff
// rust-toolchain.toml
[toolchain]
-channel = "1.76.0"
+channel = "1.78.0"
```

Let's check the alignment of our previous misaligned struct:

```text
Alignment of u128: 16                   <-- was 8 before
StockAlignment (size 144, alignment 16) <-- size was 136 before, alignment was 8
| Offset | Name      | Size |
| ------ | --------- | ---- |
| 0      | _offset   | 120  |
| 120    | [padding] | 8    |           <-- new
| 128    | data      | 16   |           <-- properly aligned now
```

The inconsistency has indeed been solved. The performance of `stock align` increased by **10%** and is now equal to `enforced align` since the alignments are the same.

<Figure maxW="400px" mx="auto">

[![CodSpeed report of the bump to 1.78](rust-align-128-1.78.png)](https://codspeed.io/art049/rust-align-128/branches/upgrade-rust-1-78)

  <Caption>Click on the image to check out the performance report of the Rust bump to 1.78.0</Caption>
</Figure>

### A note on 1.77

Although it was not announced in the [release blog post](https://blog.rust-lang.org/2024/03/21/Rust-1.77.0.html), the [128-bit integers misalignment fix](https://github.com/rust-lang/rust/pull/116672/) was already included as a part of the [1.77.0 release](https://github.com/rust-lang/rust/releases/tag/1.77.0). The reason it was announced later is that there was a related bug linked to 128-bit integers arguments which was only solved with the [update to LLVM 18](https://github.com/rust-lang/rust/pull/120055/) completed with the 1.78.0 release.

[Check out the CodSpeed report of the pull request](https://codspeed.io/art049/rust-align-128/branches/upgrade-rust), where the performance gain is already visible.

### Performance gains from bumping to 1.78.0 in the ecosystem

We have seen a number of repositories gaining performance increases when upgrading the toolchain from **1.77.x** **to 1.78.0**, with **performance gains up to 21%** depending on the benchmark. Those performance changes are not solely due to the alignment fix, but most probably related to optimizations released with the new LLVM version.

<Figure maxW="300px" mx="auto" my={4}>

[![CodSpeed report of the bump of rust to 1.78.0 on oxc](oxc-rust-1.78.png)](https://codspeed.io/oxc-project/oxc/branches/renovate/rust-toolchain)

  <Caption>oxc-project/oxc</Caption>
</Figure>

<Figure maxW="300px" mx="auto" mt={0} mb={4}>

[![CodSpeed report of the bump of rust to 1.78.0 on uv](uv-rust-1.78.png)](https://codspeed.io/astral-sh/uv/branches/samypr100:rust-update-178)

  <Caption>astral-sh/uv</Caption>
</Figure>

### Takeaways

Making sure our data structures have **a proper memory alignment** does **improves performance by reducing cache misses** and **making memory accesses faster**. However, it comes with a **higher memory footprint** implied by the padding added within our memory layouts.

These small performance changes can be hard and tedious to track, but this is where we can **leverage performance testing continuously in CI environments**, enabling informed optimization decisions.

[Here is the repository](https://github.com/art049/rust-align-128) containing the code shown in this article and you can also find its [CodSpeed performance dashboard here](https://codspeed.io/art049/rust-align-128).

### Resources

- [Rust 1.78.0 release blog](https://blog.rust-lang.org/2024/05/02/Rust-1.78.0.html#compatibility-notes)
- [u128/i128 layout update blog](https://blog.rust-lang.org/2024/03/30/i128-layout-update.html)
- [Memory Alignment and Performance](https://fylux.github.io/2017/07/11/Memory_Alignment/)
- [Size and Alignment docs in Rust Reference](https://doc.rust-lang.org/reference/type-layout.html#size-and-alignment)
- [type_layout crate](https://docs.rs/type-layout/latest/type_layout/)
- [Repository containing the code shown in the blog](https://github.com/art049/rust-align-128)
- [Getting started with Rust on CodSpeed](https://docs.codspeed.io/benchmarks/rust)
